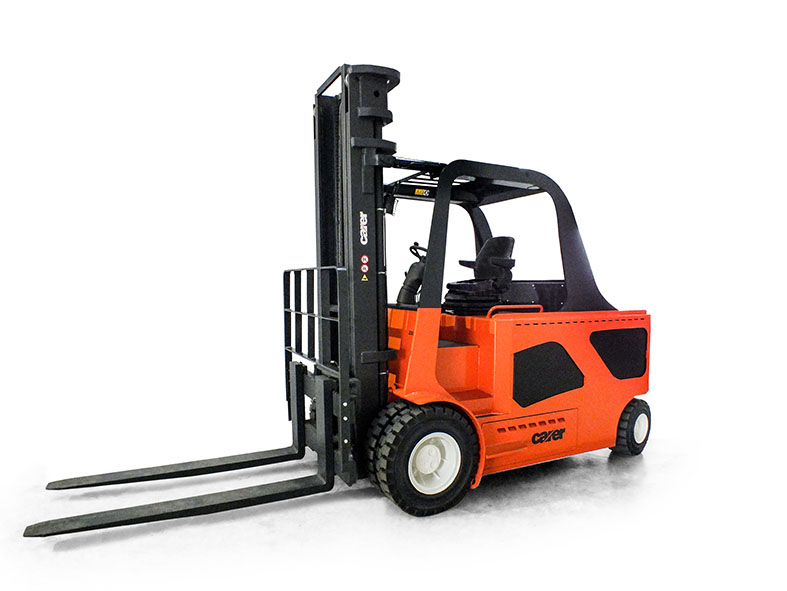

Z 80@900-100 H2 electric forklift truck
Z 80@900 H2 - Z 100 H2Specifications
Capacity | 8.000-10.000 kg |
Loadcentre | 900-600 mm. |
Voltage | 96V |
Tyres | SEG |
Motors | AC |
Brakes | Electrical |
Travel speed | 13,5 km/h |
Hoisting speed | 0,44 m/s |
Battery | 1380-1500 Ah |
The driver's seat is large and spacious.
The arrangement of the controls and on-board instruments respect the ergonomic dimensions.
The steering wheel has a tilting and depth-adjustable column.
The large cushioned seat, adjustable in every direction also according to the operator's weight.
A large handle and two large steps facilitate access to the driver's seat.
The front and rear visibility is exceptional thanks to the raised driving position; The electronic control with alternating current guarantees maximum silence and maximum efficiency of the motors.
Electric motors are developed and designed to withstand heavy duty.
The electronic braking system, mounted directly on the two front traction motors, guarantees extraordinary efficiency and durability with minimum energy consumption.
In addition, electric braking has three energy recovery systems: brake pedal, when the accelerator is released, reversing the direction of travel.
The high swing cylinders ensure excellent mast stability by reducing twisting thanks to their position and large lever arms.
The possibility of adjusting the parameters of the electronic system through a highly advanced digital touch screen display allows you to customize the truck settings according to the applications and the habits of the operators, balancing their performance in terms of high performance or long work autonomies.
